OPC storage


Nortel OPC

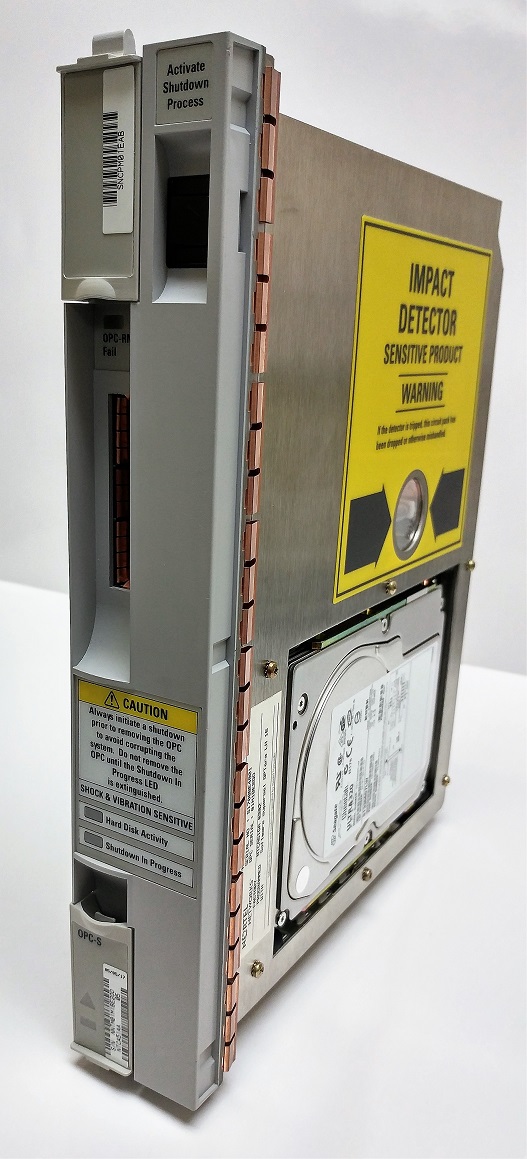

The Operations Controller (OPC) provides centralised data and software management.

It is equipped with an Operating System interface and a
hard disk. It also can include an integrated DDS tape drive.

NT7E24BC

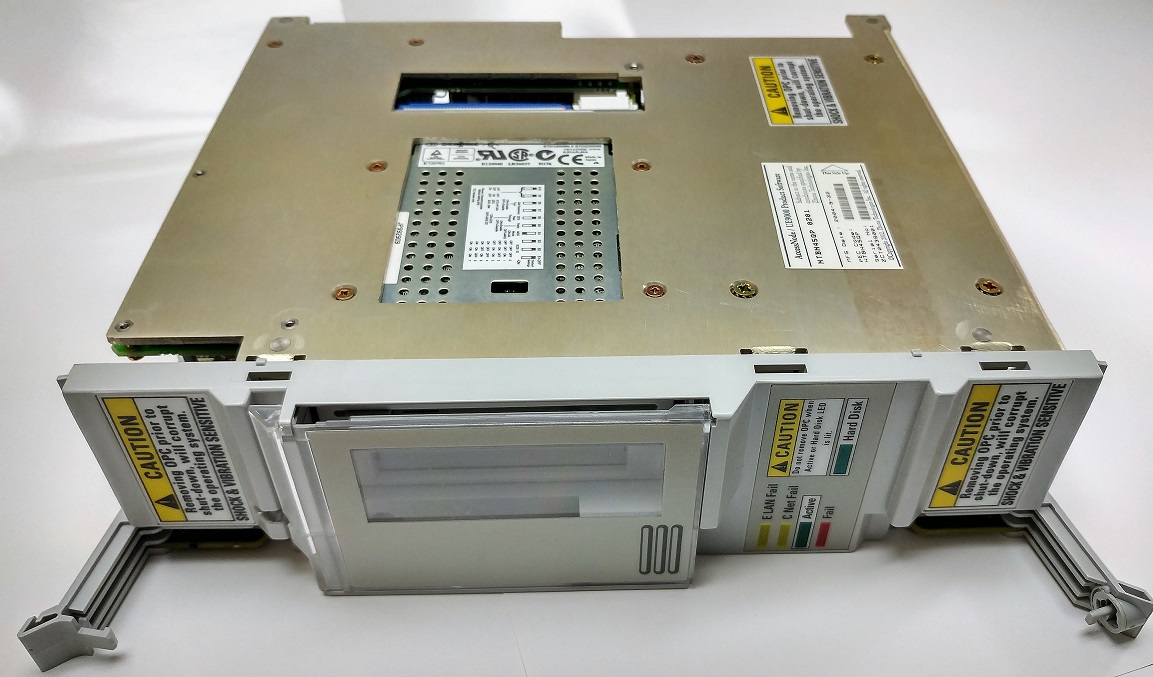

OPC_

Legacy OPC
Operations Controller
The Operations Controller (OPC) provides centralized data and software
management. It is equipped with an Operating System interface and a
525-megabyte hard disk. It also includes an integrated tape drive.
Typical examples:-
NT7E24AA    OPC (320/340 Mbyte) without tape drive.. not supported rel 15 onwards
NT7E24BA    OPC (320/340 Mbyte) with tape drive.. not supported rel 15 onwards

NT7E24CA    Portable OPC (320/340 Mbyte)    .. not supported rel 15 onwards
NT7E24CC    Portable OPC (525 Mbyte)

NT7E24AC    OPC (525 Mbyte) without tape drive
NT7E24BC    OPC (525 Mbyte) with tape drive
NT7E24EA    Solid-state OPC (640 Mbyte) without cartridge drive
NT7E24FA    Solid-state OPC (640 Mbyte) with cartridge drive
OPC restored factory condition
Supply restored factory condition OPC with HDD reformatted ready for software.
Or we can load whatever software release that is needed by yourselves
We can extract software from your original cards
Repair original OPC, but in most cases we offer replacement we find it a quicker turn round time
Software upgrades. We can upgrade any OPC to any software release that you need.
Assist in loaning OPC cards using Advanced replacements procedure
Remote access upgrades. We can upgrade any network remotely.


 NTCA51AA & NTCA51BA

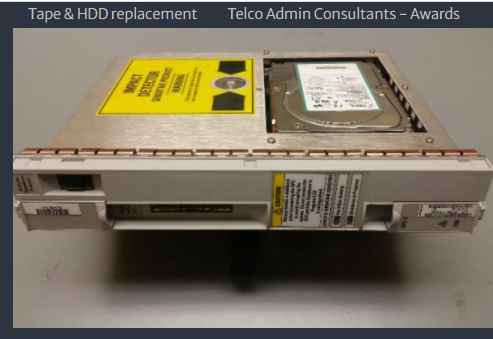

  OPC_NTCA51AA

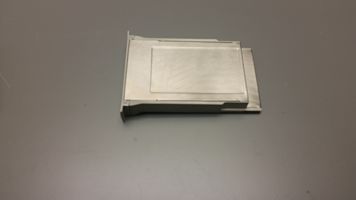

NTCA53BA



OPC Removable Media
The OPC controller storage circuit pack consists of a hard disk drive,
electrically erasable programmable read only memory (EEPROM) and a
removable media interface NTCA53AA and NTCA53BA.

 NTCA53BANTCA53BA_2

Short Descriptions:-

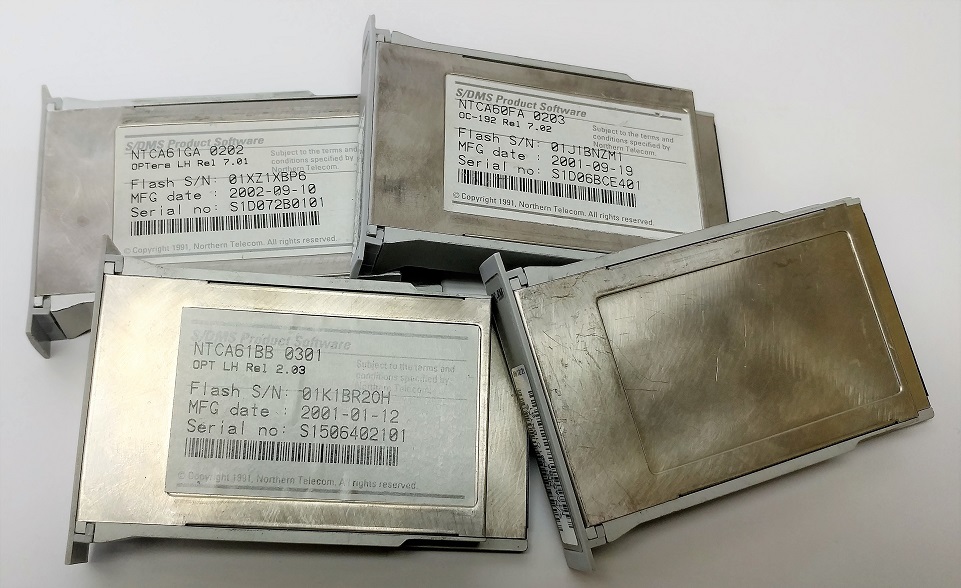

122M OPC Flash Cartridge

OPC-RM (FLASH MODULE)

OPC FLASH CARTRIDGE (122 MBYTES)

OPC REMOVABLE MEDIA
